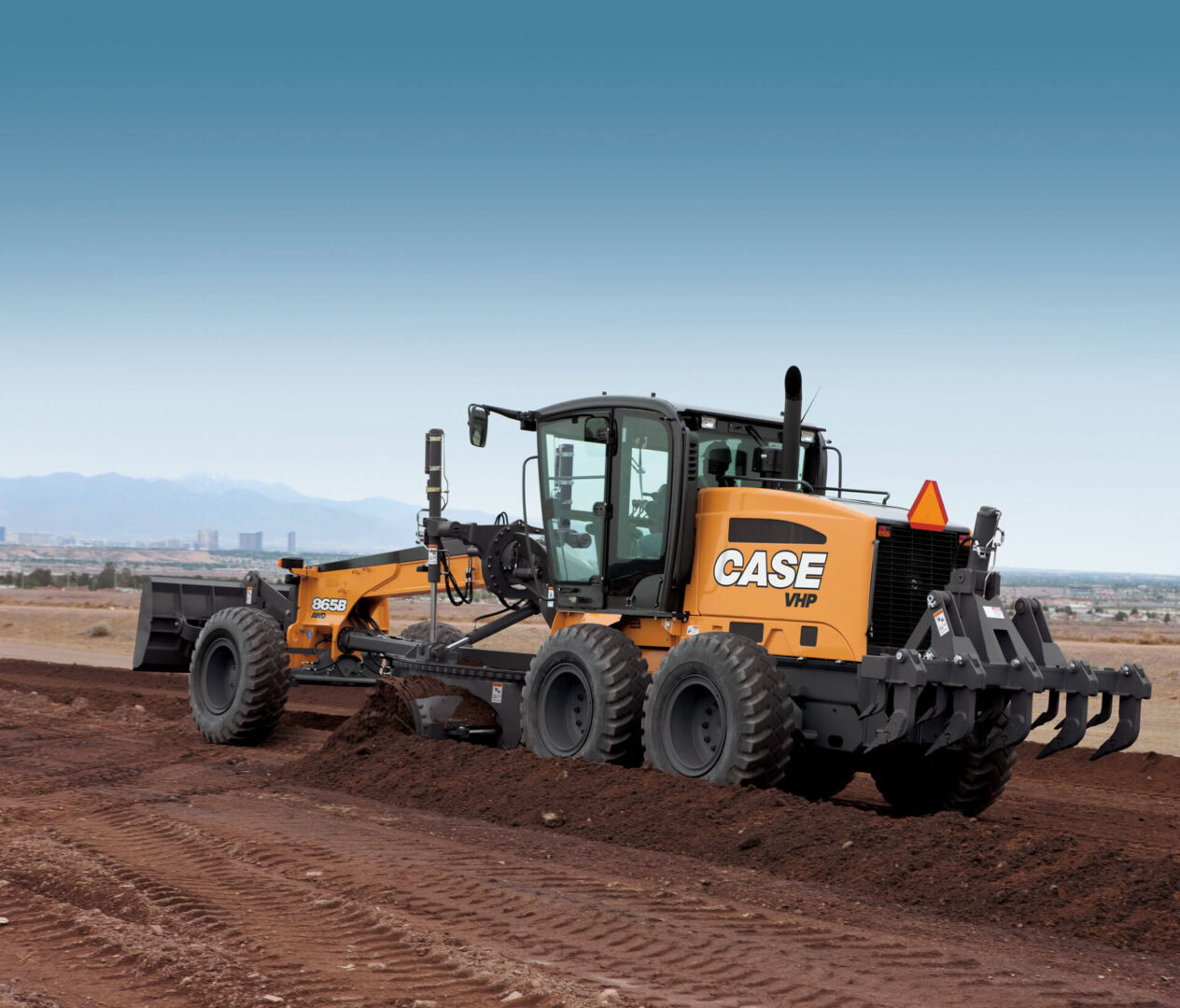

case 865B

865B

The 800 series motor graders are built with a powerful engine and rugged A-frame that provides plenty of stability. Industry-leading flip-up rear hood, best-in-class serviceability, and outstanding visibility combine to make the CASE 865B motor grader both easy to maintain and extremely durable. The multi-radius involuted moldboard design offers better fuel economy and increases productivity. The CASE 865B motor grader is now available with all wheel drive to increase efficiency in both wet and muddy conditions. AWD improves tractive performance, excellent steering and side draft control in the worst underfoot conditions such as snow, mud, and sand.

865B brochure

Request a Quote

Interested in this 865B unit but need some financing? Message us TODAY to speak with one of our financing specialists.

Financing Options

Features

Productivity

Get the flexibility of both manual and automatic shifting to match the job conditions at hand with our powershift direct-drive transmission. Increased power, stability and turning performance to the moldboard are delivered through the A-frame and high-strength circle. For unmatched ground-breaking power, our rear-ripper accommodates up to five teeth and front scarifier accommodates 11 teeth.

Fuel Efficiency

Move even more dirt with less horsepower and better fuel economy through a multi-radius involuted moldboard design.

Comfort and Visibility

Superior all-around visibility and a clear view of the moldboard are achieved with floor-to-ceiling cab glass. Operator comfort is provided by ergonomic, low-effort control levers positioned within easy reach.

Serviceability

Get easy access to the engine and perform daily maintenance checkpoints with the friendly flip-up hood. Reaching the fill port or grease zerks is simple with ground-level access including our exclusive fuel fill with lockable cap.

Details

OPERATOR ENVIRONMENT

  • ROPS/FOPS cab – SAE J231, ISO 3449
  • Adjustable operator’s console
  • Adjustable cloth suspension seat w/ 3 in (76 mm) retractable seat belt
  • Safety glass, Dome light
  • Inside rearview mirror
  • Outside rearview mirrors
  • Cup holder
  • Storage tray
  • 12-volt outlet
  • Radio ready – 12 Volt
  • Electrical master switch – automatic
  • Heater/defroster/pressurizer
  • Air conditioner
  • Sound suppression
  • Delphi AM/FM Radio w/ CD
  • Cab doors – left/right
  • Steps – left/right
  • Steering wheel
  • Windshield wiper – front
  • Windshield washer – front

ENGINE

  • FPT F4HE9687C turbocharged diesel
  • Tier 3 certified
  • Temperature controlled cooling fan
  • Charge air cooler
  • Air intake grid heater
  • Common rail electronic fuel injection
  • Hydraulic – driven cooling fan
  • Auto idle

DRIVETRAIN

  • Hydraulic differential lock

HYDRAULICS

  • Closed center, load sensing hydraulic system
  • Controls for all functions
  • 9 section control valve
  • Hydraulic moldboard side shift and pitch
  • 5-position saddle
  • 14 ft x 23.6 in (4267 x 600 mm) moldboard
  • 8 hydraulic diagnostic quick couplers
  • Front and rear piping for hydraulic attachment

TIRES

  • 14.0 x 24 – 12 PR

ELECTRICAL

  • (2) Heavy-duty batteries – 1010 CCA
  • Electronic Systems Monitor
  • Horn
  • Alternator – 90 amp
  • Backup alarm
  • Headlights
  • (2) Turn signals front
  • (2) Tail lights with turn signals, brake lights
  • Flood lights – cab mounted

TELEMATICS

  • CASE SiteWatch™ Telematics – includes hardware and a 3-yr Advanced data subscription

INSTRUMENTS

  • Analog displays/Gauges: Fuel level, Engine coolant temperature, Transmission oil temperature, Hydraulic oil temperature
  • Monitor Functions: Hour meter, Engine speed, Travel speed, Current gear selection, FNR indication, Clock, Trip computer, Fuel consumption, Fuel level percentage, Oil pressure, Coolant temperature, Engine oil temperature, Transmission oil temperature, Hydraulic oil temperature, Turbocharger air temperature, Differential lock indicator, Gear selection indicator, Engine diagnostics, Transmission diagnostics, System voltage, Error reporting, Warning prompts
  • Indicator warning lamps: Main warning, Parking brake, Low brake pressure, High beams, Turn signals, Hazard lights, Low fuel
